Descrizione
FREQUENTLY USED IN
- Medical Technology

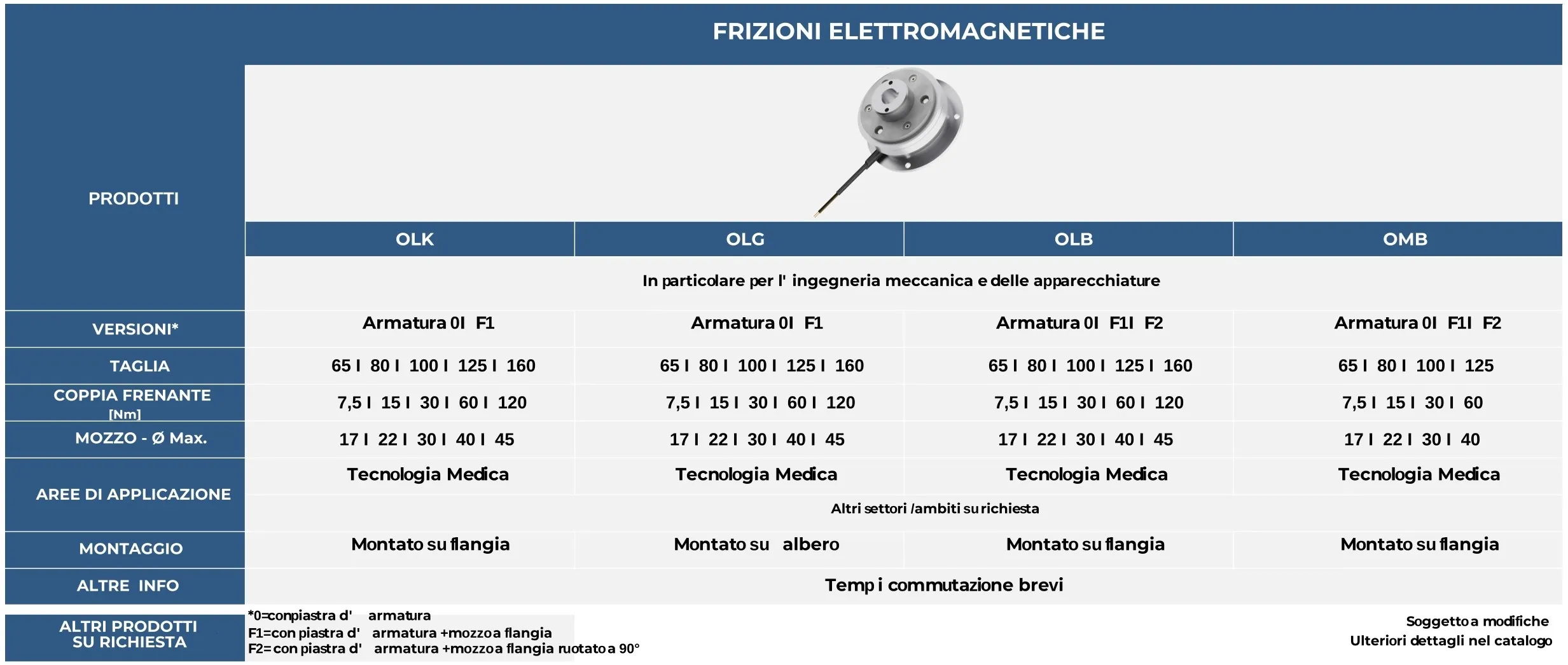

SPECIFICATIONS
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armatureF1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 80 | 31,7 | 43 | 28 |
| 80 | 15 | 100 | 35 | 51 | 31 |
| 100 | 30 | 125 | 40,7 | 61 | 36 |
| 125 | 60 | 150 | 46,3 | 70,5 | 40,5 |
| 160 | 120 | 190 | 54 | 85 | 47 |
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armature F1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 68 | 67,7 | 59 | 44 |
| 80 | 15 | 87 | 73,7 | 68,5 | 48,5 |
| 100 | 30 | 108 | 84,7 | 80 | 55 |
| 125 | 60 | 135 | 96,8 | 92 | 62 |
| 160 | 120 | 170 | – | 111 | 73 |
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armature F1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 80 | 51,7 | 43 | 28 |
| 80 | 15 | 100 | 56,2 | 51 | 31 |
| 100 | 30 | 125 | 65,7 | 61 | 36 |
| 125 | 60 | 150 | 75,3 | 70,5 | 40,5 |
| 160 | 120 | 190 | – | 85 | 47 |
| Size | Braking torque [NM] | Outer diameter [mm] | Height /armature F2 [mm] | Height /armature F1 [mm] | Height /armature 0 [mm] |
|---|---|---|---|---|---|
| 65 | 7,5 | 80 | 26,2 | 37,5 | 22,5 |
| 80 | 15 | 100 | 28,7 | 44,7 | 24,7 |
| 100 | 30 | 125 | 33,2 | 53,5 | 28,5 |
| 125 | 60 | 150 | 38 | 62,2 | 32,2 |
