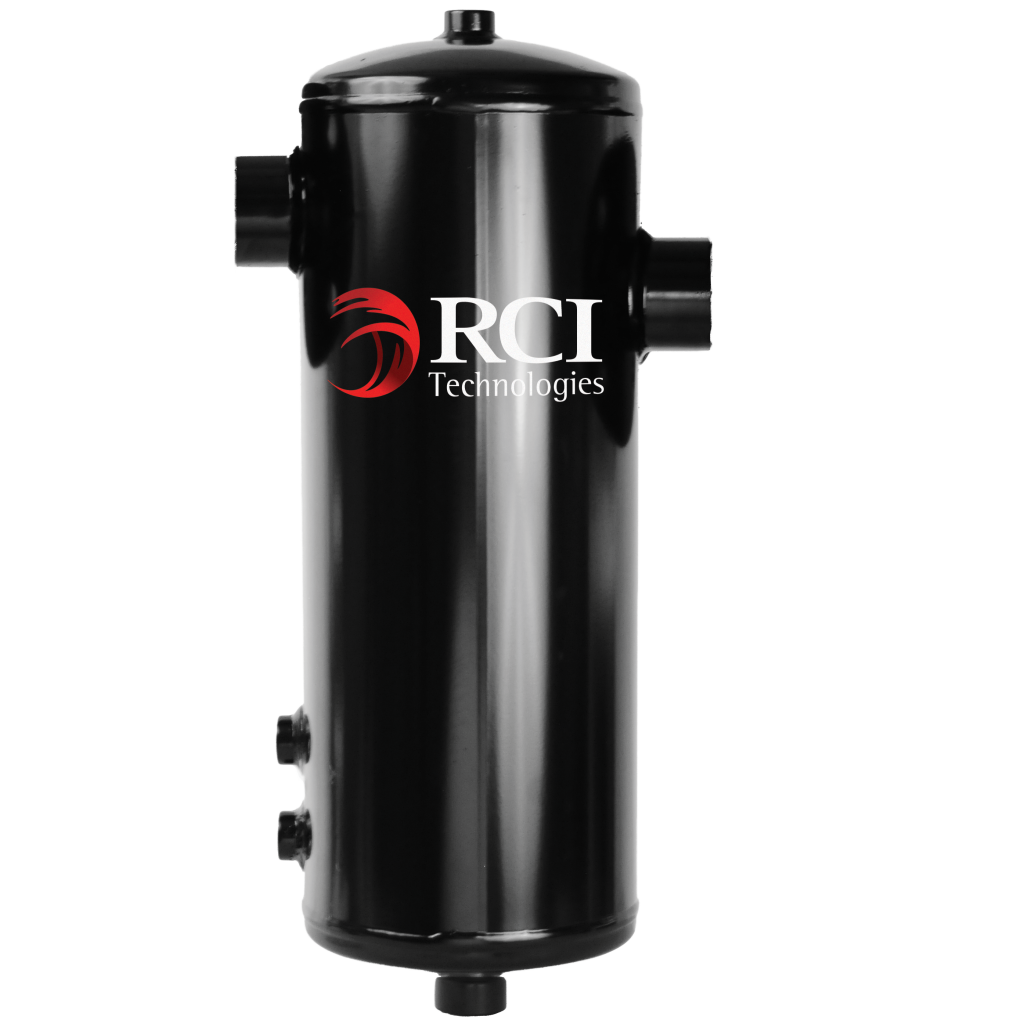

FP 1000



FP 1000

The RCI Technologies patented fuel purifier is a one-step unit that removes up to 99.8% of free water and up to 95% of other heavy contaminants that are found in diesel fuel. Even today’s “clean” diesel fuel will easily become contaminated during transportation and storage. Unlike many other products on the market, the RCI Technologies fuel purifier performs this function without the use of a replaceable, changeable, or cleanable filter element or cartridge. By removing contamination immediately before the fuel enters the engine’s filter system, you can keep your fuel clean, preserve fuel quality, and extend the life of your equipment.

The FP 1000 is designed for locomotives, diesel fuel pumping stations, fuel docks, extra heavy-duty mobile or stationary engines and large marine applications. This unit comes standard with mounting straps; optional platform base stand is available. Please specify for platform mounting.

**Optional platform base stand sold separately**

SPECIFICATIONS

  • FLOW RATE:40 gal/min | 151.4 lts/min
  • CONNECTION SIZE:1″ NPT
  • DIMENSIONS:20″ H x 7″ W
  • GROSS WEIGHT:22 lbs.
  • APPLICATIONS:Locomotives, Pumping Stations, Fuel Docks, Extra Heavy-Duty Mobile or Stationary Engines, Large Marine Applications
  • TOP PORT:1/2″ NPT
  • SENSOR PORT:1/2″ – 20 Straight Thread
  • MAX OPERATING PRESSURE:50 psi
  • FINISH:Polyester Black Powder Coat – 35 to 40 gloss
