Description

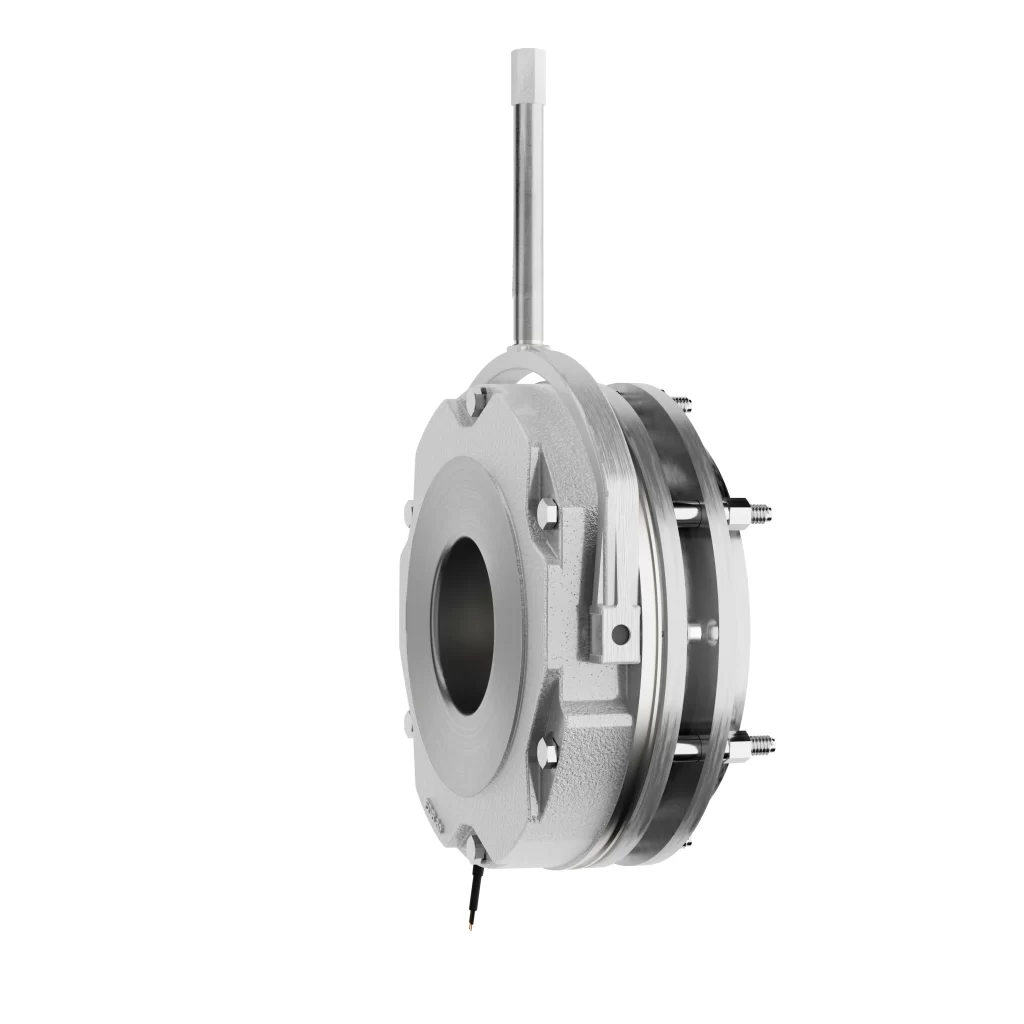

DOUBLE ROTOR BRAKE
125-1200 Nm
Brake torque
IP 54
Protection class
FREQUENTLY USED IN
- Only recommended for horizontal installation
- Vertical installation on request
- With the FDR double rotor brake, large braking torques can be achieved in small spaces
OPTIONS
- Manual hand release
- Mounting flange
- Microswitch for function or wear control
- Sensor for function control
- Tapped holes for tacho or encoder mounting
- Dust protection ring
SPECIFICATIONS
| Size | Braking torque [Nm] | Outer diameter [mm] | Height [mm] |
|---|---|---|---|
| 23 | 300 | 225 | 119 |
| 26 | 500 | 258 | 130 |
| 30 | 800 | 306 | 137 |
