FDD

logo_precima

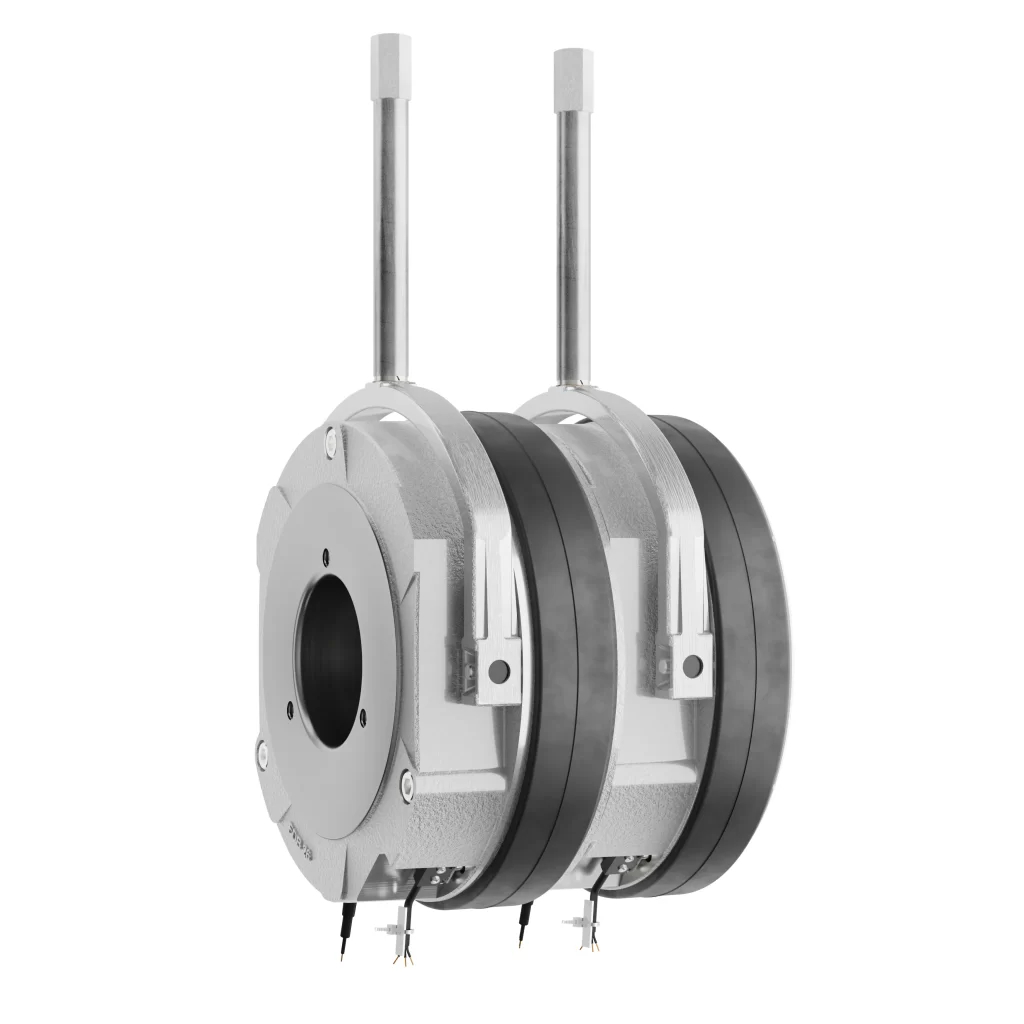

Double brakes are used where there are high demands on safety. These two spring-loaded brakes, which act independently of one another, are ideally suited for use in theater construction due to their special noise dampening. This redundant system was specially created for holding purposes. The type test according to EN 81 and BVG C1 for elevator brakes is available.

Description

SILENT DOUBLE BRAKE

2x3,5-2x1200 Nm

Brake torque

IP 54

Protection class

FREQUENTLY USED IN

  • Stage Technology
  • Lifts

OPTIONS

  • Microswitch for function control
  • Sensor for function control
  • Friction plate or mounting flange

SPECIFICATIONS

SizeBraking torque
[Nm]		Outer diameter
[mm]		Height
[mm]
082×68982,6
102×12,5109102,4
132×25135115,2
152×50155129,6
172×75175150,6
202×125201171,8
232×187231190,6
262×300264208,8
302×500312220
402×1200408259,2

DOCUMENTATION & DOWNLOADS

Catalog FDD
Full Range Overview
