Description

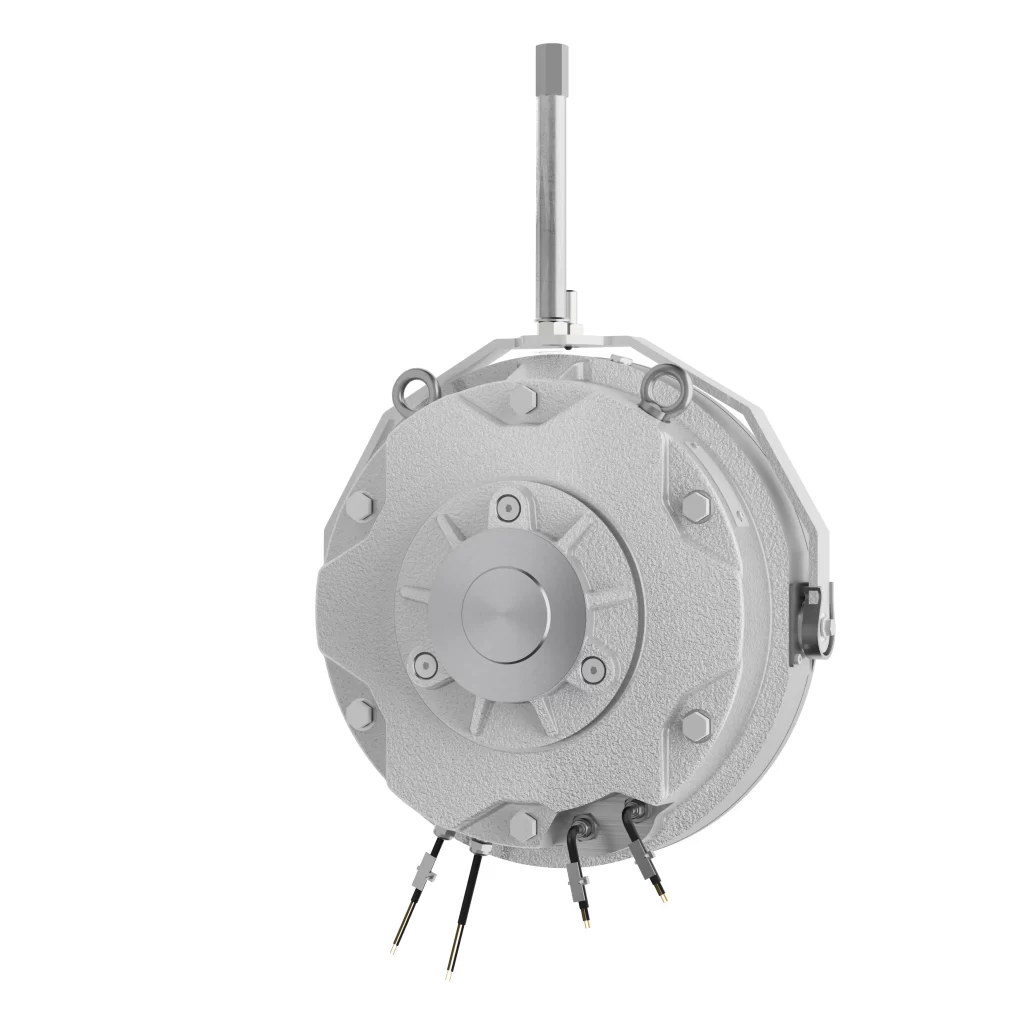

SEAWATER RESISTANT BRAKE
125-1500 Nm
Brake torque
IP 67
Protection class
FREQUENTLY USED IN
- Offshore Wind Power
- Shipping Marine
OPTIONS
- Manual hand release, optionally lockable
- Microswitch for function or wear control
- Sensor for function control
- Axial cable for brake and micro switch/sensor
- Closed at the back (sealing flange) or with a double shaft seal continuous wave
- Temperature sensor or anti-condensation heating
- Mounting flange
- Customized terminal box
SPECIFICATIONS
| Size | Braking torque [Nm] | Outer diameter [mm] | Height [mm] |
|---|---|---|---|
| 26 | 250 | 294 | 116 |
| 30 | 500 | 342 | 122 |
| 40 | 1000 | 436 | 138 |
